Verify catalog identity, luminaire orientation and test date.

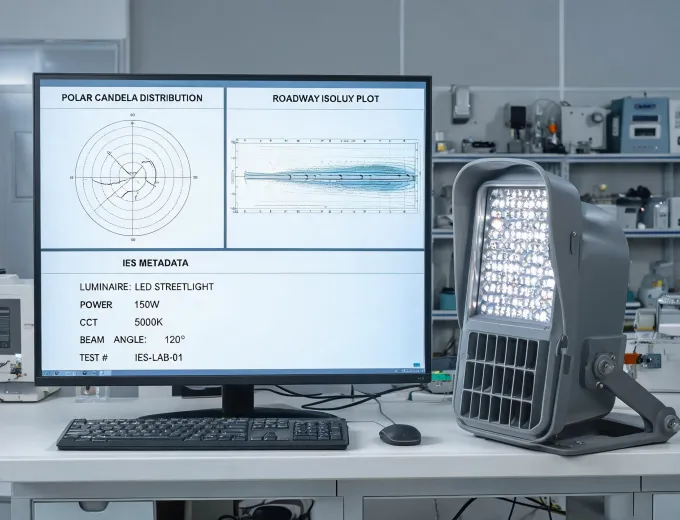

IES · LDT · calculation context
Greenshine Photometric Resources for Traceable Outdoor Lighting Reviews
A file is useful only when its product identity, test basis, orientation and revision can be connected to the proposed configuration. This center explains the checks behind resource selection without presenting generic downloads as project approval.
Resource Readiness Dashboard
Match output, CCT, optic and driver configuration.
Request the applicable report scope rather than a family summary.
Read projection conditions with LM-80 source data and thermal context.
File Request Path
Submit a model family, optic, CCT, output package and control option. Greenshine can then identify the closest declared resource and flag configuration differences that need engineering confirmation.
1. Identity record
Full luminaire series, optical code, nominal luminous flux, CCT, CRI and driver combination.
2. Test context
Laboratory method, tested orientation, ambient conditions when declared, measurement date and source document.
3. Reproduction package
Dimensioned plan, calculation grid, reflectance assumptions, maintenance factor, mounting height, aiming and file revision.
4. Field confirmation
Verify installed orientation, programmed output, obstructions and voltage. A calculation predicts performance from inputs; it does not measure the completed site.
From File Receipt to Specification Record
Screen metadata
Confirm that model, optic and output correspond to the schedule.
Run the project model
Document grid, criteria, geometry, maintenance factor and boundary conditions.
Review trade-offs
Compare efficacy against UGR or glare exposure, useful distribution, CRI and spill-light criteria.
Freeze the revision
Record the selected file, calculation version and open field-verification items.
Interpretation limits
Photometric files do not establish structural adequacy, battery autonomy, code approval or actual field maintenance. Solar sizing remains sensitive to shading, seasonal irradiation and temperature. Product certification must be confirmed for the exact market and configuration. When measured values are required after installation, agree on meter calibration, weather, grid points and stabilization time before testing.
Request a Greenshine Photometric File Review
Identify the product configuration and application so the response can include the correct file context.
